* Flanged dimensions available upon request

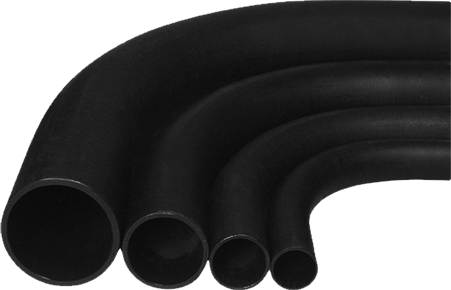

Manufactured in one continuous piece of PE4710 High Density Polyethylene Pipe.
All angles up to and including 1° - 90° available
in IPS (OD) diameters from 2" to 20" and metric (OD) diameters from 50mm to 508mm.
Center line radius of curvature (IPS) from 7.13" to 60" and 181mm to 1524 (metric).
DIOD sweep bends are also available upon
special request.
All angles up to and including 1° - 90° available
in IPS (OD) diameters from 2" to 20" and metric (OD) diameters from 50mm to 508mm.
Center line radius of curvature (IPS) from 7.13" to 60" and 181mm to 1524 (metric).
Tolerances:
· linear tolerance of +/-3/4" (+/-20 mm)
· angular tolerance of +/-2 Degrees with no reversion
· linear tolerance of +/-3/4" (+/-20 mm)
· angular tolerance of +/-2 Degrees with no reversion
DIOD sweep bends are also available upon
special request.
LS DIMENSIONS
(does not include flanged bends)
| SIZE | D | L | R | S-30° | S-45° | S-60° | S-90° |
|---|---|---|---|---|---|---|---|
| 2" IPS | 2.375" | 6" | 7.13" | 7.5" | 9" | 10.5" | 13.3" |
| 3" IPS | 3.5" | 6" | 10.5" | 8.5" | 10.3" | 12.1" | 16.5" |
| 4" IPS | 4.5" | 6" | 13.5" | 9.6" | 11.6" | 13.8" | 19.5" |
| 6" IPS | 6.625" | 7" | 19.9" | 12.3" | 15.2" | 18.5" | 26.9" |
| 8" IPS | 8.625" | 10" | 24.5" | 16.6" | 20.1" | 24.2" | 34.5" |
| 10" IPS | 10.75" | 11" | 32.25" | 19.6" | 24.3" | 29.6" | 43.2" |
| 12" IPS | 12.75" | 13" | 38.3" | 23.3" | 28.7" | 35.1" | 51.3" |
| 14" IPS | 14" | 13" | 38.9" | 23.4" | 29.1" | 35.5" | 51.9" |
| 16" IPS | 16" | 16" | 48" | 28.9" | 35.9" | 43.7" | 64" |
| 18" IPS | 18" | 18" | 54" | 32.5" | 40.4" | 49.2" | 72" |
| 20" IPS | 20" | 20" | 60" | 36.1" | 44.9" | 54.6" | 80" |
